What Are The Dimensions Of Your Hoppers?

All of the Hopper Dimensions are as follows and can be compared below. All sizes shown are in millimetres (mm):

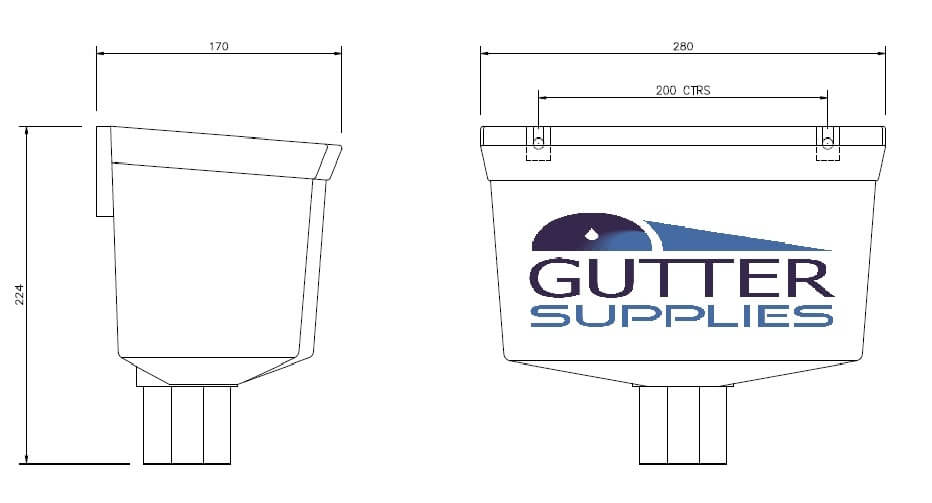

RHS1 (All colours)

The RHS1 is the standard hopper used for Half Round, Square, Ogee and Deepflow gutter systems. It has an octagonal outlet that fits into either a 68mm circular downpipe or a 65mm square pipe.

RH1CI (Cast Iron Effect)

This is the most cost effective of the three options of hoppers available in the Cast Iron Effect range. Fits both 68mm circular and 65mm square downpipe.

RH5CI (Cast Iron Effect with Decorative Edging)

A pretty hopper with a period feel in keeping with this range. It has side ears to make a feature of the fixings. Fits both the 68mm circular and 65mm square downpipe.

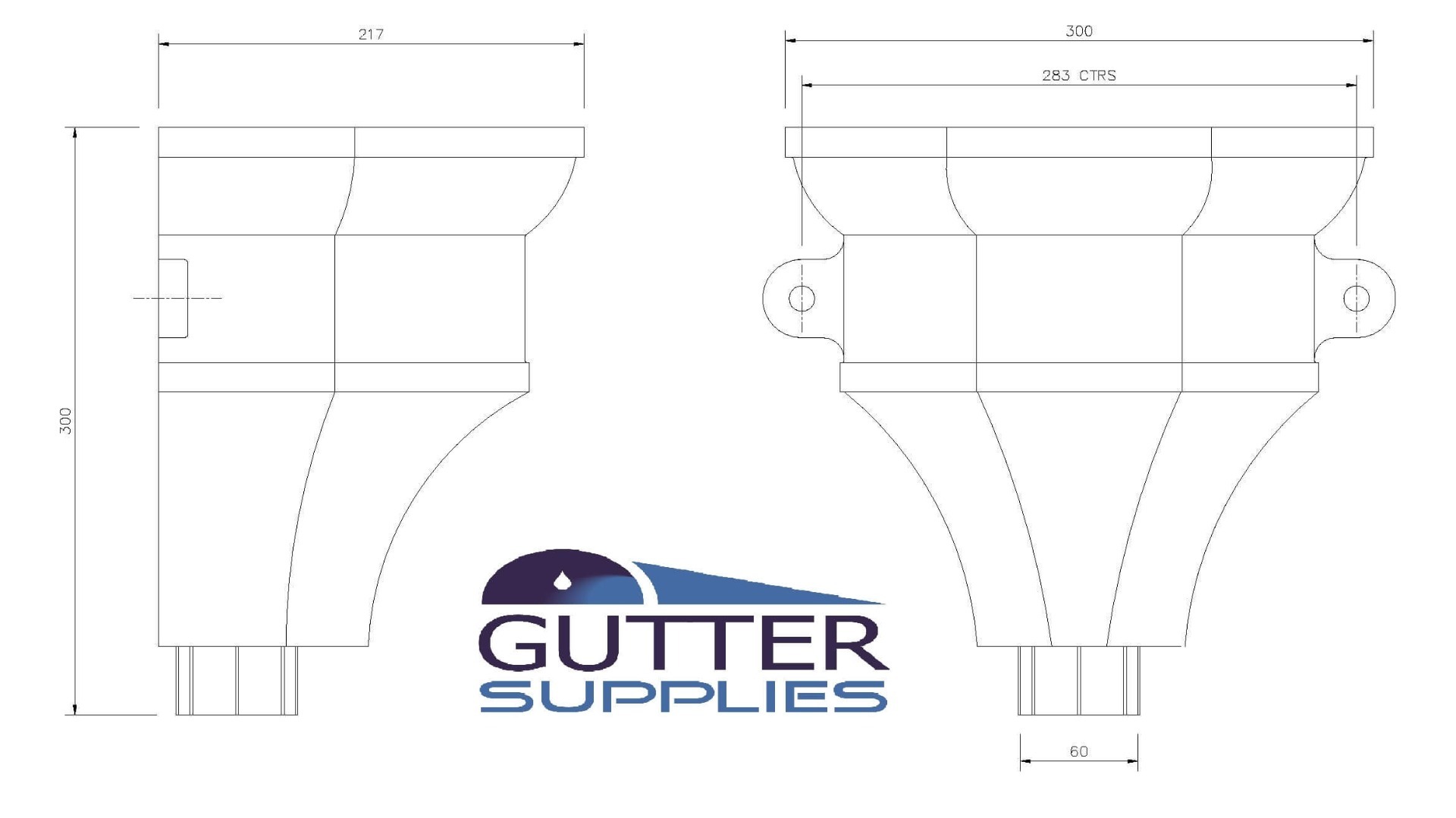

RH4CI (Ogee Cast Iron Effect)

Probably the nicest looking we sell. Originally made to complement the Ogee Cast Iron Effect range, we sell equally as many with the Half Round and Deepflow ranges. From time to time we also sell them for use as decorative planters! Fits both 68mm circular and 65mm square downpipe.

RHX1 (Black, Grey & White)

The RHX1 is used in conjunction with the Xtraflo Industrial Gutter system. The neck of this fitting is made to fit inside a socket of a 110mm pipe. Our 110mm x 3m pipes that accompany this system come with one plain end and one ring seal socket.
