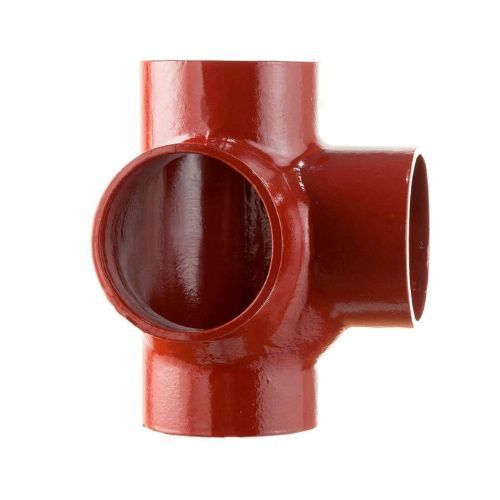

Cast Iron Halifax Soil Branch Corner - 88 Degree x 100mm
In stock
Code
HS4042
| Code | HS4042 |
|---|---|
| EAN Code | 0691208229517 |
| Angle | 88 Degree |
| Brand | Hargreaves Halifax |
| Colour | Red Epoxy Coated |
| Material | Cast Iron |
| Style | Corner |
| Life Expected | 100 Years + |
| Specification | BS EN 877 |
| Size | 100mm |
Comer branches are used to connect to branch runs of drainage coming from different directions into a main soil stack. As the name suggests, they are most commonly found in the corner of a room.
The angle of this 88 degree corner branch creates a 2 degree fall that promotes self-cleansing.
As Halifax pipes and fittings have no sockets, couplers are required to connect this branch to a pipe.
A full dimensional drawing of this product can be found in the  Halifax technical catalogue.
