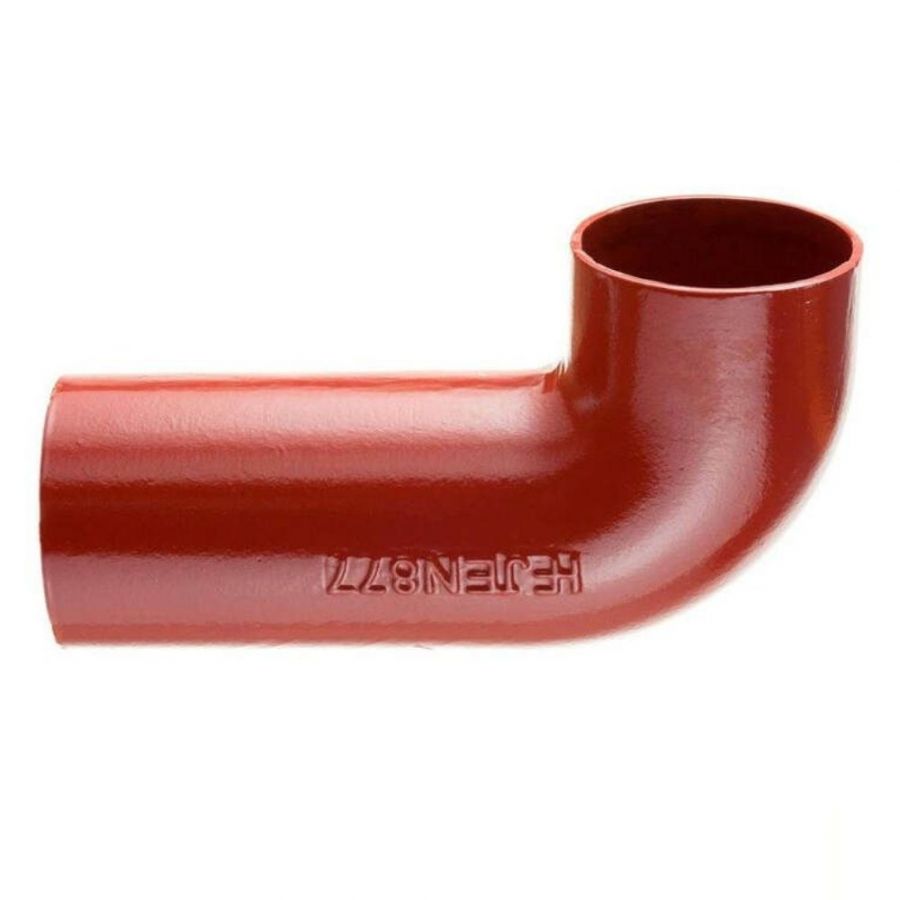

Cast Iron Halifax Soil Bend Long Tail - 88 Degree x 100mm
In stock
Code
HS4013
| Code | HS4013 |
|---|---|
| EAN Code | 0691208229395 |
| Angle | 88 Degree |
| Brand | Hargreaves Halifax |
| Colour | Red Epoxy Coated |
| Material | Cast Iron |
| Style | Long Tail |
| Life Expected | 100 Years + |
| Specification | BS EN 877 |
| Size | 100mm |
This 88 degree long tail bend is sometimes referred to as a swivel bend or a pistol bend. It is used to create a sharp change of direction in the soil stack, often in conjunction with another fitting.
As Halifax pipes and fittings have no sockets, couplers are required to connect this bend to a pipe.
A full dimensional drawing of this product can be found in the  Halifax technical catalogue.
