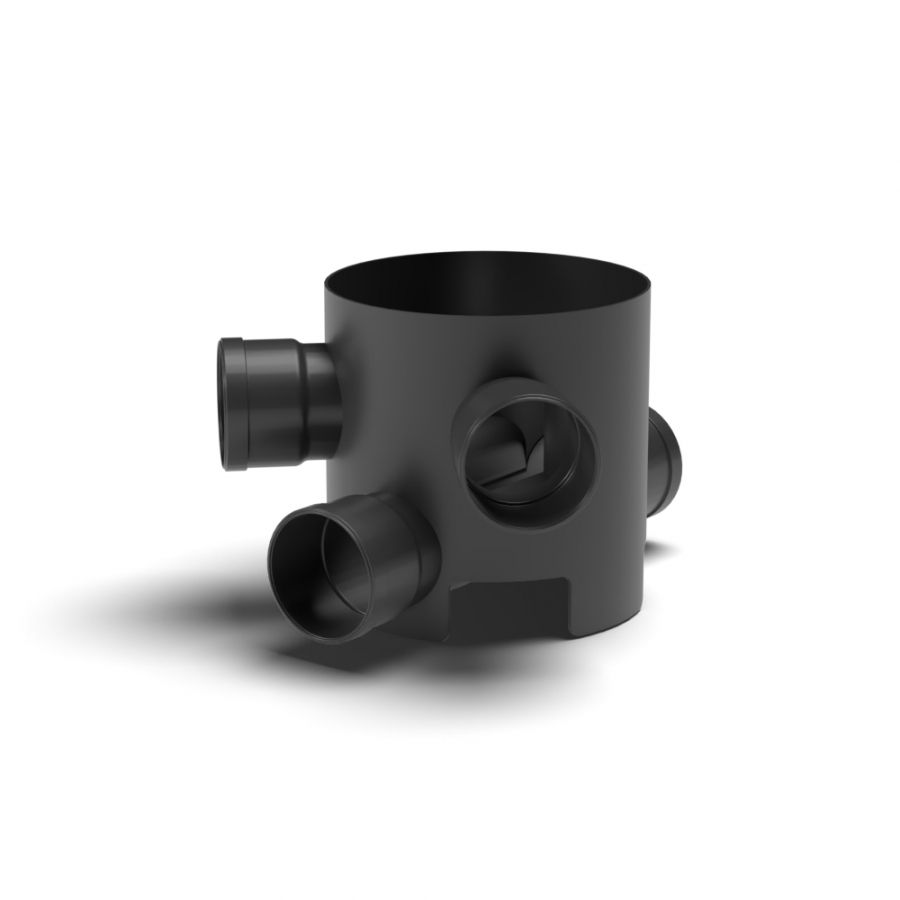

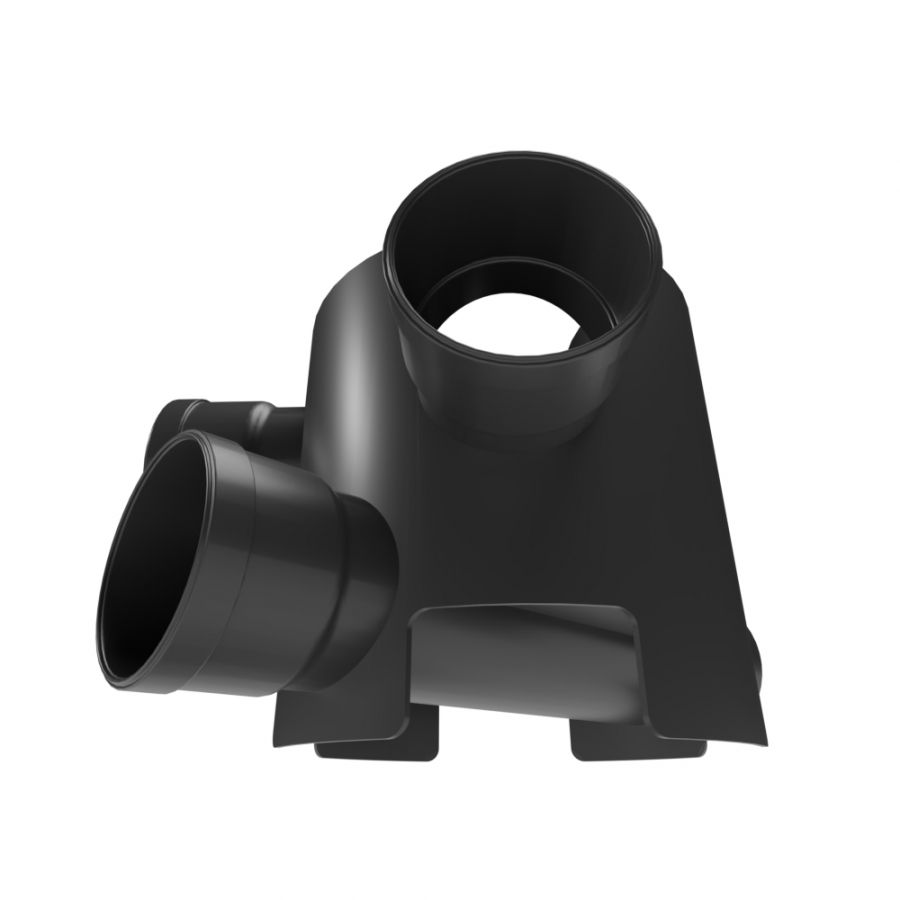

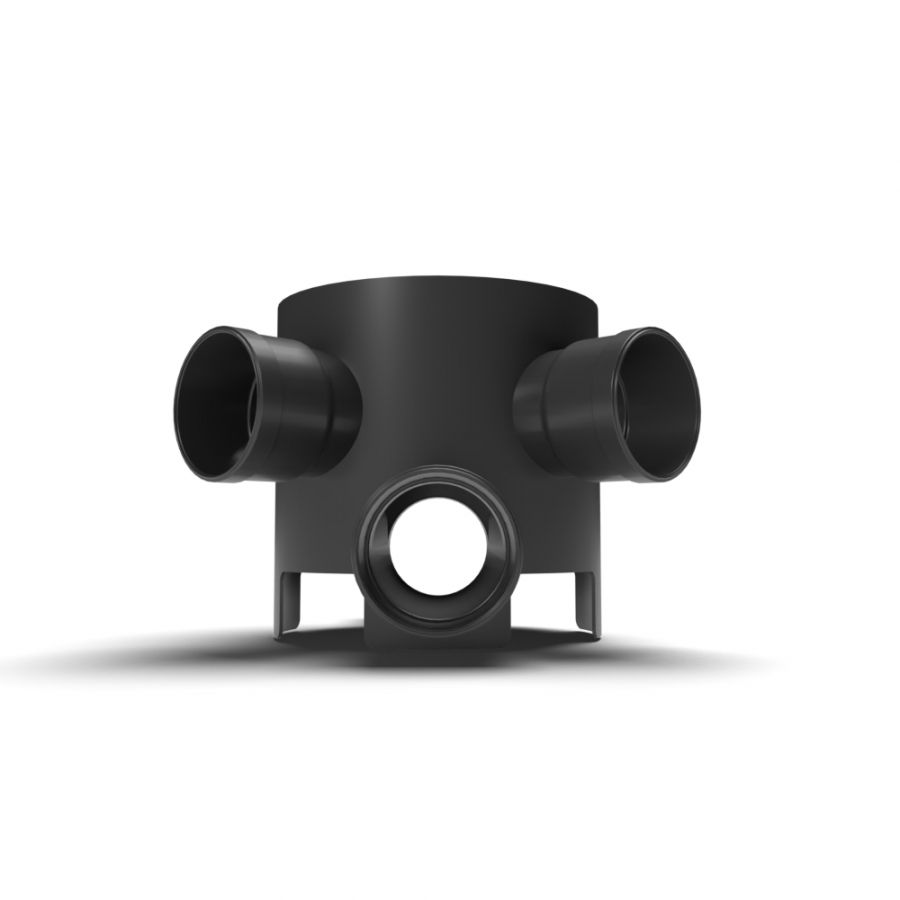

FloPlast Inspection Chamber Base 3 Fixed Inlets - 300mm Diameter
In stock
Code
D810
| Code | D810 |
|---|---|
| EAN Code | 5055149916779 |
| Weight (kg) | 1.950000 |
| Brand | FloPlast |
| Colour | Black |
| Material | PVC |
| Chamber Type | 3 Fixed Inlets |
| Dimension | 270mm (H) x 300mm (Diameter) |
| Guarantee | 10 Year Manufacturer Guarantee |
| Specification | BS 7158 |
| Size | 270mm Height x 300mm Diameter |
This popular mini chamber is always used in conjunction with our D820 and D822 risers and usually our CLKS300 square cover. Our recessed covers (CD300SR and T1G3) can also be used with this system.
The main channel of the base is left open and the two side inlets are blanked off with integral blanking plugs - simply remove the blanking plug by pushing it out from within the base to open and use the side inlets.
The side inlets are set at an angle of 45 degrees to the main channel. All inlets and the outlet feature a standard 110mm ring seal socket which accepts all leading UK makes of 110mm PVC-u underground drainage.
