Micro Macerator Single Pumping Station - 190 Litre
Pumping stations are designed for water and wastewater treatment, effluent and sewage discharge in all domestic, commercial and industrial sites.
Our stations can be supplied with either single or twin pumps and macerator options are also available.

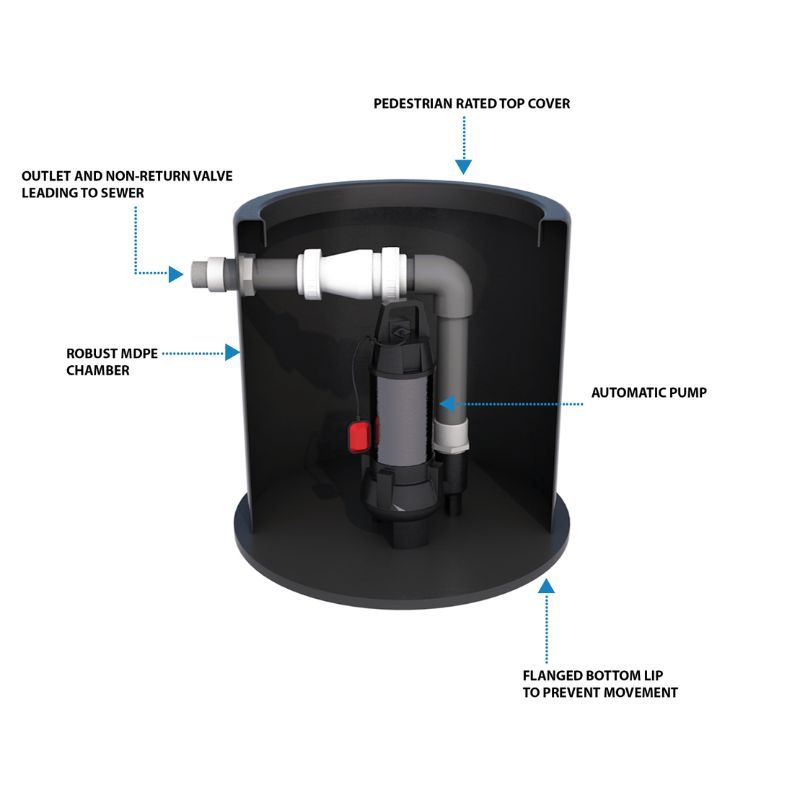

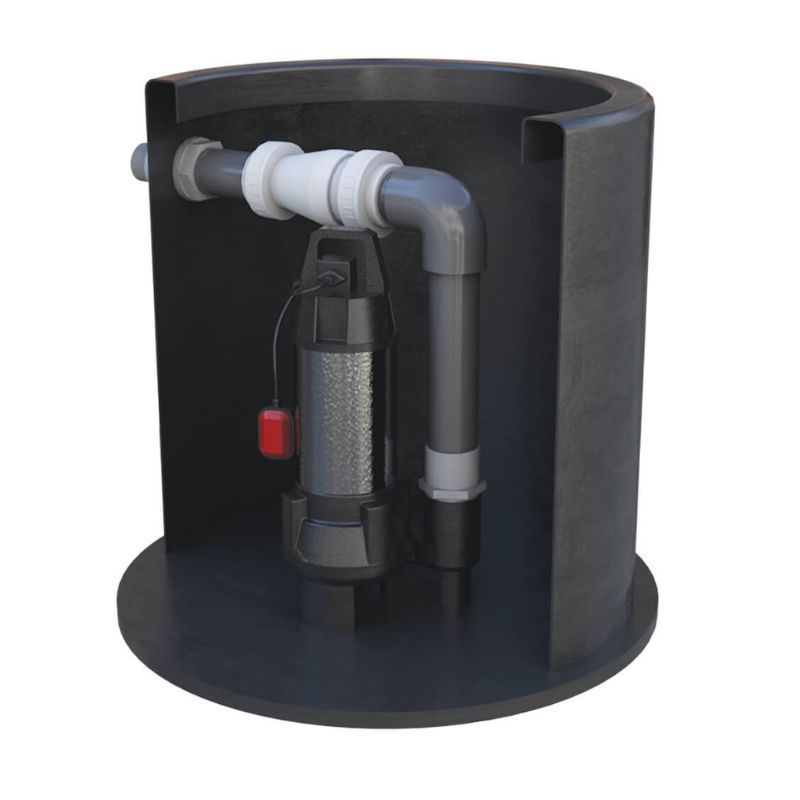

These Micro pump stations, manufactured by DPT, are designed to collect foul or surface water from a single W.C. and/or utility room and then discharge it to the main sewer.
The system is suitable for delivering domestic sewage or surface water to sewer lines located at a higher level, or where gravity drainage is not possible.
Pumps can be designed and then installed either internally (floor mounted) or in underground external installations. They are ideal for basements and ground floor extensions where other facilities in the property discharge via gravity.
Please note that this pumping station does not come with the 110mm inlet pre-installed, instead the inlet can be created by using a drill on site, drilling to the invert and on the side required.
Features & Benefits
- Pre-assembled, offering quick and easy installation
- Storage Volumes from 190 to 600 litres available

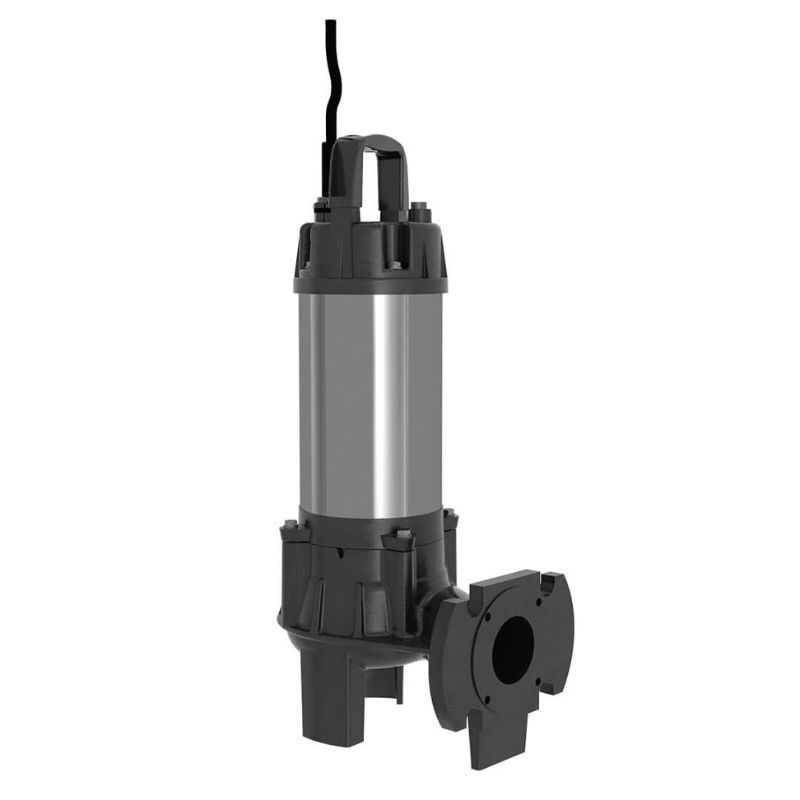

- Vortex pumps with solid handling, has a proven reliable design and are very robust
- Suitable for floor mounting or burial underground
- Supplied with 10m of cable
- Chamber manufactured in medium density polyethylene
- Designed to BS EN 12050 for structural strength and water-tightness
- Supplied with fitted circular lockable access cover
