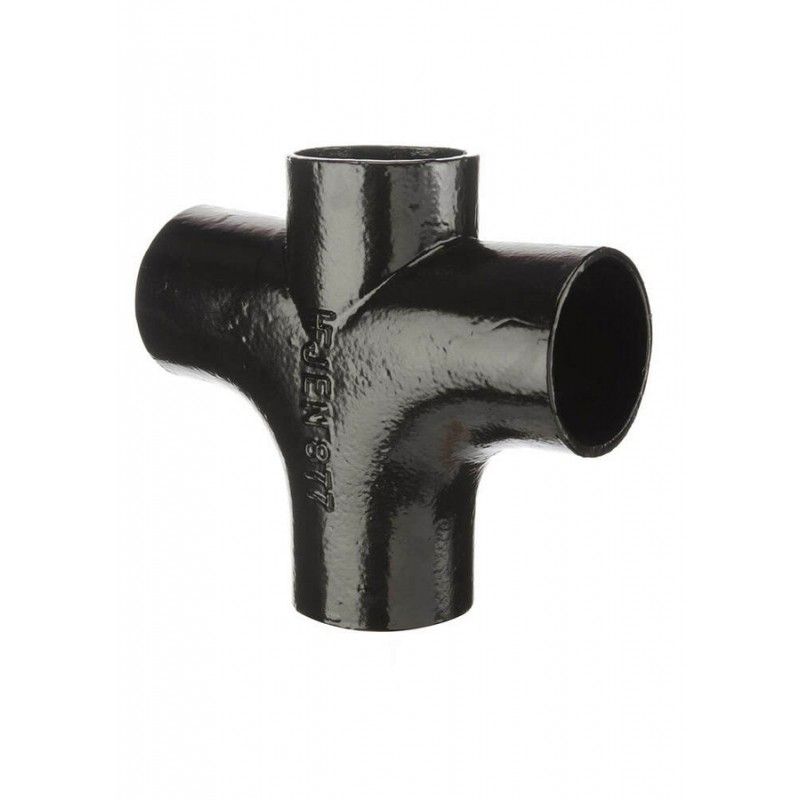

Push Fit Cast Iron Soil Double Branch - 92.5 Degree x 100mm
| Code | TX4038 |
|---|---|
| EAN Code | 0691208238786 |
| Angle | 92.5 Degree |
| Brand | Hargreaves Traditional Express |
| Colour | Black |
| Material | Cast Iron |
| Style | Double |
| Life Expected | 100 Years + |
| Specification | BS 416/2 (Cast Iron) and BS EN 681 (Gaskets) |
| Size | 100mm |
Double branches in a soil stack have a number of uses, but essentially they are used for the purpose of connecting multiple pipe runs, usually in a vertical plane. They are most commonly seen on external elevations, connecting a number of above ground drainage runs together into a single soil stack.
As our push fit cast iron soil pipes and fittings are all plain ended, sockets are required to connect this branch to a pipe.
All of our push fit cast iron soil fittings are treated to a factory black two-pack gloss paint finish. The whole range is manufactured in grey cast iron to BS EN 1561.
This soil pipe range is particularly well-suited to installations in public buildings, listed buildings and conservation projects. It is 100% recyclable. Click here to view or download full installation instructions.
