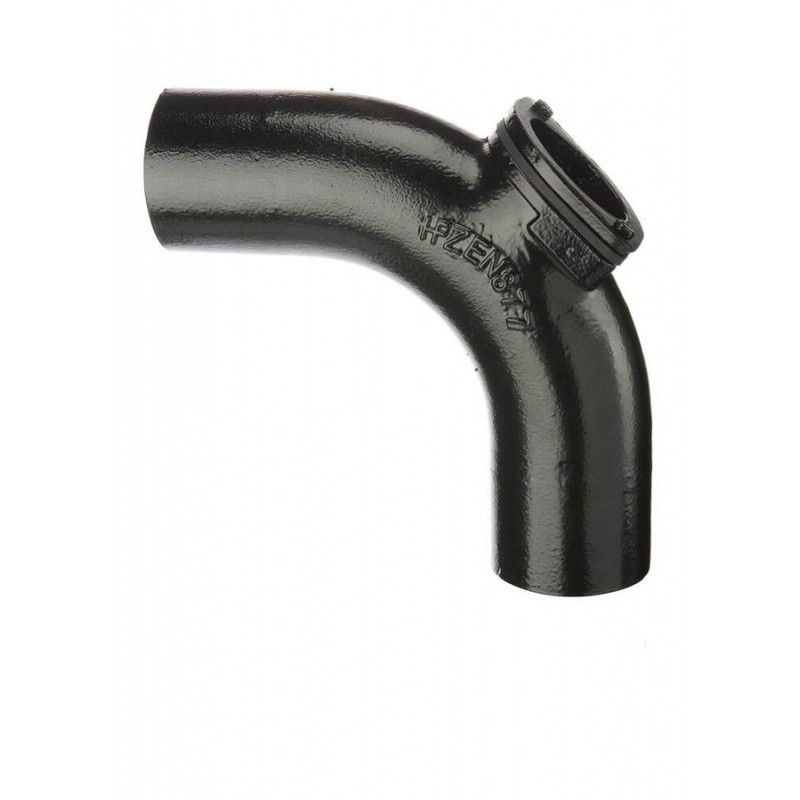

Push Fit Cast Iron Soil Long Radius Access Bend - 92.5 Degree x 100mm
| Code | TX4011 |
|---|---|
| EAN Code | 0691208238694 |
| Angle | 92.5 Degree |
| Brand | Hargreaves Traditional Express |
| Colour | Black |
| Material | Cast Iron |
| Life Expected | 100 Years + |
| Specification | BS 416/2 (Cast Iron) and BS EN 681 (Gaskets) |
| Size | 100mm |
Soil access bends are used to change the direction of a soil pipe whilst allowing access into the pipe from both directions for inspection and cleaning. Used in either a vertical or horizontal plane, the 92.5 degree angle gives a slight fall which promotes a self-cleansing flow within the soil pipe. This bend has a longer radius than the TX4010M short radius access bend.
To use the access point, simply remove the access door by undoing the bolts. This could potentially release any blockage so it is always advisable to stand aside at this point!
As our push fit cast iron soil pipes and fittings are all plain ended, sockets are required to connect this bend to a pipe.
All of our push fit cast iron soil fittings are treated to a factory black two-pack gloss paint finish. The whole range is manufactured in grey cast iron to BS EN 1561.
This soil pipe range is particularly well-suited to installations in public buildings, listed buildings and conservation projects. It is 100% recyclable. Click here to view or download full installation instructions.
