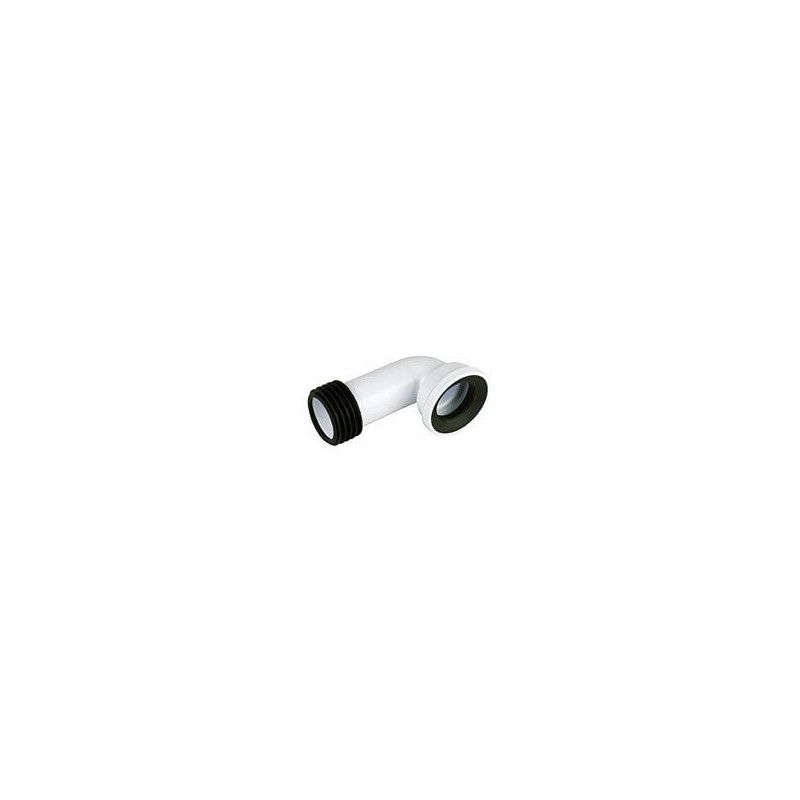

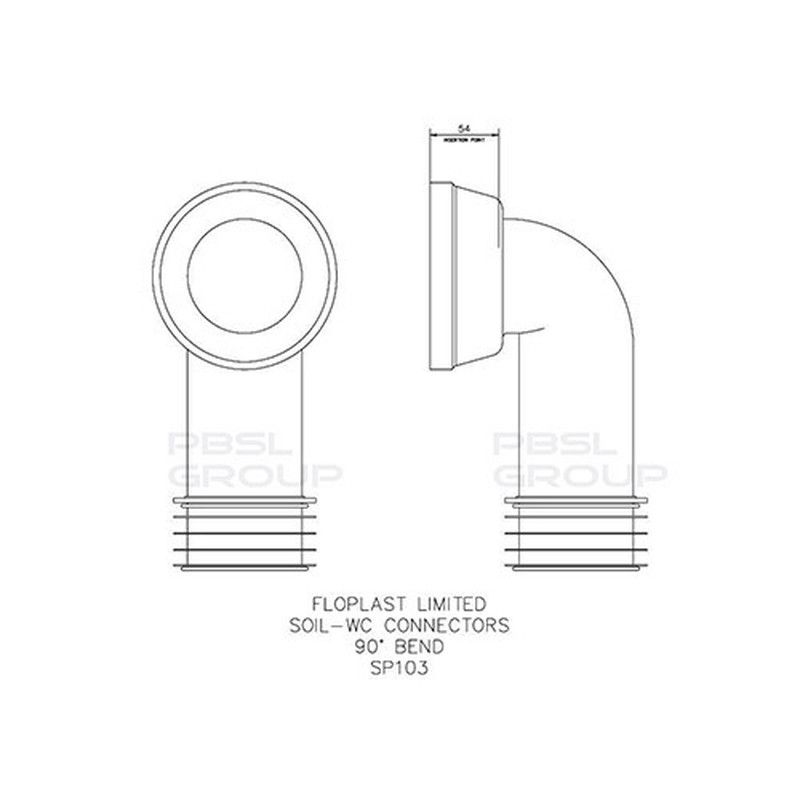

FloPlast Pan Connector - 90 Degree White

A 90 degree pan connector is used to connect a standard horizontal outlet WC Pan to a soil pipe connection at 90 degrees to the outlet, usually situated in the floor. It is also sometimes referred to as a bent pan connector.

All of the fins on the outlet of the pan connector should be pushed securely into the soil pipe to make the connection. The neck of the pan is then pushed inside the large ring seal at the front of the pan connector. A small application of silicon spray is often useful to facilitate this pan connection. Once the connection has been made, double check that no part of the seal is kinked or trapped.

Our pan connectors are made in durable polypropylene to BS5627:1984. The integral sealing diaphragm allows for out of alignment connections of up to 5 degrees in any direction.
